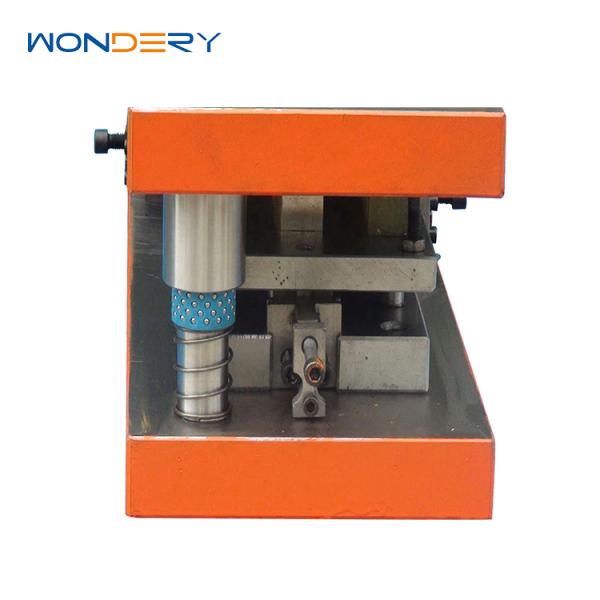

Universal Aluminum Radiator Header Plate Mold for 18x2mm Flat Tube

Name: Universal Aluminum Radiator Header Plate Mold for 18x2mm Flat Tube
Brand: WONDERY
Price: 7 USD

Quality Universal Aluminum Radiator Header Plate Mold for 18x2mm Flat Tube for sale

Place of Origin : Jiangsu, China

Brand Name : WONDERY

Model Number : ZBM-18*2T

MOQ : 1

Price : $7,000

Shaping Mode : Punching Mold

Product Material : aluminium

Flat Tube Size : 18*2mm

Flat Tube Rows : 1 row to 5 rows

Aluminum Plate Material : 4343/3003/4343

Aluminum Plate Thickness : 1.0mm

Mold Material : Cr12

Mold Plate Material : 45# steel

Mold Type : punching mold

Mold Model : 18*2*1R

Max Tube Holes : customized

Fin Height : 3.17 to 8mm

Tube Hole Distance : 8mm

Mold Design : universal design

Mold HS Code : 8207300090

Contact Now

Universal Design Aluminum Radiator Header Plate Mold for 18*2mm Flat Tube

Universal Aluminum Radiator Header Plate Mold for 18x2mm Flat Tube

Product Application

The universal radiator header die is universal design for saving cost. It is suitable for the after sales market and OEM market also depending on the design. minum header plate mold, header plate die

Technical Parameters of Radiator Header Plate Mold

1) header plate mold material: 45# mold bottom plate;
2) punching blade and matrix material: Cr12 material;
3) mold type: punching mold;
4) mold hs code: 8207300090

5) mold model: 18*2*1R;

6) flat tube size: 18*2mm;

7) flat tube row number: 1 row to 5rows

8) mold design: unviersal design;

9) max flat tube hole number: customized;

10) fin height: 3.17 to 8mm;

11) flat tube hole distance: 8mm;

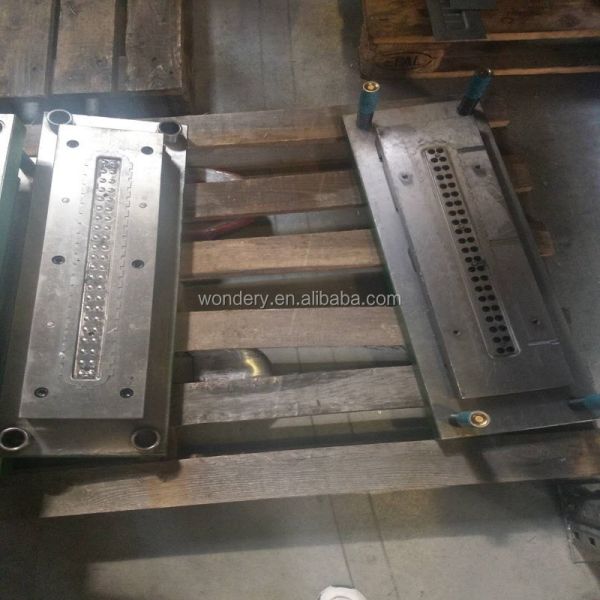

Detailed Images

Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines. Currently the company mainly supplies the equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, ship industry, etc. Our main products are: radiator making machines, aluminum fin machine, aluminum radiator core builder machine, aluminum radiator plastic tank clinching machine, aluminum radiator brazing furnace, aluminum header pipe punching machine, aluminum flat tube straightening and cutting machine, high speed fin press machine, aluminum/copper pipe straightening and cutting machine, tube expander machine, automatic bending machine, progressive fin die, metal punching die, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.

1. What is the power supply of the heat exchanger making machines?

The power supply of heat exchanger making machines is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the melting furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?

The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?

The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?

The delivery time of the machine is 30-60 days after receipt of down payment.
